A choice of |
 |
electric operators to suit your needs |
Seip TM series garage door operator German Quality at your Fingertips !
five year manufacturers warrantee |
|
|
'T' Series Operator Range - Strides ahead of the competition
Ultra quiet DC motor with soft start & soft stop speed control |
|
Unrivalled safety for
your
family & pets
Seip's garage door operators are well engineered German
made units with many distinct advantages over the competition, the
most notable being progressive acceleration and deceleration of the
motor speed to provide smoother door movement with reduced stress &
quieter door closure by slowing down just prior to closing and their
ability to automatically learn and memorize the |
|
precise operating characteristics
of your door and stop the motor immediately an obstruction is detected
to provide the highest possible level of safety for your family & pets.
Maintenance-free with
quick & simple Installation
Seip's unique pre-assembled track design makes D.I.Y. installation a joy ! |
|
|
|
Don't just take our word for it ! -
Read what ours customers say ! |
| Purchased a Seip operator to replace an expired old Catnic Garador electric operator which
was noisy and tended to slam the double garage door shut. The
Seip's Soft Start/Stop function is great, as is the quiet operation.
The mini key fobs are great for the car key ring, and work very well.
Great service and a great door operator. Thank you.
Geoff Cox, Cumbria |
|
Just completed fitting a Seip electric operator, excellent construction, easy to align,
just follow the comprehensive instructions, and best of all no more
pulled back muscles lifting the garage door by hand ! A 1st rate
company who understands the customer - Recommended
Steve Rowe, Formby, Lancs. |
|
Read more reviews from
satisfied customers |
|
|
|
A choice of
keyfob style transmitter
to provide
individual control of up
to four motors
(doors or gates)
|
'Mini' key-fob transmitter SKRJ433
The toughest & most durable keyfob transmitter available,
it can be kept on your keyring or
fitted in your car
to control
up to two Seip motors or
Seip remote control receivers
dimensions 41mm x 26mm x 10mm
weight: 8gms - CR1616 lithium batteries included
Price £ each excl. VAT
|
'Midi' key-fob transmitter SKR433-3
can provide individual control of up to four
Seip motors or
Seip remote control receivers
dimensions 69mm x 32mm x 14mm
weight 24gms - CR2032 lithium battery included
Price £ each
excl. VAT
|
|
•
Replacement Seip keyfob transmitters
• |
|
|
|
Prices & On-Line Ordering |
|
The prices shown below include 2 x 'Midi' SKR433-3 remote controls as standard, however you can add additional remotes of either style to your order if desired. Prices for additional remotes can be found above.
How to order:
Enter the keyfob quantities you require into the boxes beside the Seip operator model of your choice, if you do not wish to add extra remotes then simply leave the quantity at zero. Once you have made your choice, click 'Buy Now' & proceed to the checkout.
|
|
|
|
|
Model TM70s - chain driven operator with 800N max. pulling force
Drive speed: progressive acceleration to 18cm/sec
Door suitability: one-piece horizontally tracked doors or
sectional type doors up to 130KG in weight OR up to 10m2 in area
or a pair of side-hinged doors (with our AP2006 side hinged door adaptor arm kit)
Remote Controls: includes 2 x 'Midi' SKR433-3 remotes as standard
Our price: £ excl. VAT
|
Enter your choice of additional
keyfob type & quantity if desired
|
|
|
Model TM80 - chain driven operator with up to 80kgs max. pulling force
Please note, the TM80 is now discontinued. The TM70S above is a suitable alternative.
Drive speed: progressive acceleration to 14.5cm/sec
Door suitability:
one-piece horizontally tracked doors
sectional type doors up to approx.15' wide or a pair of side-hinged doors (with our AP2006 side hinged door adaptor arm kit)
Remote Controls: includes 2 x 'Midi' SKR433-3 remotes as standard
Discontinued.
|
|
|
|
Model TS100 - chain driven operator with up to 100kgs
maximum pulling force for very heavy doors.
Drive speed: progressive acceleration to 14cm/sec
Door suitability:
heavy horizontally tracked doors or
sectional type doors up to 20' wide
Remote Controls: includes 2 x 'Midi' SKR433-3 remotes as standard
Our price: £ excl. VAT
|
Enter your choice of additional
keyfob type & quantity if desired
|
|
|
|
Order by 12 noon
for Next-Day delivery
Free
Delivery option to most
Mainland UK*
destinations
*carriage charges apply on deliveries to some remote locations
(see
Courier delivery map
for details)
PLEASE NOTE:
Orders received by 2pm Monday to Thursday are despatched by overnight courier for delivery the next working
day. If you are not at home to sign for the parcel from, 8.30AM to 5.30PM please provide an alternate address
on our on-line order checkout page |
|
We do not export Seip
operators overseas
Seip operators are available to
UK & European specification only |
|
|
|
Overview of features (all Seip operator models) |
- Quick assembly track system
- Automatic chain tensioning system
- Automatic force measurement to
EN 12453 safety specification
- EN 12445 compliant & CE-compliant
- Ultra quiet DC motor with soft-start and soft-stop speed
- Low power consumption
(<2.3 Watts standby)-
Quality German engineering
-
Maintenance free - no oiling required
- Five year manufacturers guarantee
(including transmitters)- Secure 433MHz rolling code remote control system
-
2 or 4-channel keyfob style transmitter option
- Wall mounted push button switch supplied
|
- Battery backup & solar powered versions available
> details
- Automatic integral 230V 28 Watt halogen courtesy light
- Adjustable courtesy light time duration
- Pre-movement warning light (optional)
- Automatic reverse if obstruction detected during closure
- Connections for optical break-beam safety stop device
- Emergency manual release cable supplied as standard
(for use either via a locking door handle or as a pull-cord)
- Low head-room steel 'C' rail drive track, a minimum
of 35 mm above the door is all that is required
- Door suitability: one-piece horizontally tracked doors or
sectional type doors or outward opening
side hinged barn doors up to 4.6 Mtrs wide with optional AP2006 connecting
arms
|
|
| Technical Specifications |
TM50 |
TM70S |
TM80 |
TS100 |
| Pulling Force: (nominal/peak) |
50kg/60kg |
800N |
80kg/90kg |
100kg |
| Automatic Self Learning Force-Setting: |
Yes |
Yes |
Yes |
Yes |
| To suit doors up to: (without track extension) |
4m x 225cm |
130KG or 10m2 |
5m x 230cm |
6m x 230cm |
| To suit doors up to: (with optional track extension) |
4m x 275cm |
N/A |
5m x 325cm |
6m x 415cm |
| Motor: |
24 V dc, low-noise |
| Max. Running Speed: |
18 cm/sec |
14 cm/sec |
| Internal Courtesy Light: |
230 Volt 28 Watt halogen lamp |
| Pre-Warning Light: (to warn of pending door movement) |
programmable option |
| Timed Auto Close: |
programmable option (30 secs to 2 mins) |
| Adjustable Light Duration: |
10 secs. to 10 mins
|
80 to 240 secs. |
| Duty Cycle: |
50% |
20 cycles per day |
50% |
80% |
| Manual adjustment of open & close limit stop positions |
no |
yes |
| Soft-Stop adjustable in closing direction |
Yes |
| Power Supply: |
230V AC mains (via UK 13A plug) |
190-250V AC |
230V AC mains (via UK 13A plug) |
230V AC mains (via UK 13A plug) |
| Power consumption in standby: |
2 Watts |
2.3 Watts |
| Power consumption under maximum load: (includes lamp) |
310 W |
N/A |
310 W |
360 W |
| Normal Running Length: |
250cm |
264cm |
| Max. Running Length: (*with 3x 1Mtr 'C' rail track extensions) |
550cm* |
N/A |
550cm* |
414cm |
| Overall Length: |
315cm |
321cm |
| Motor Head Height: (including track) |
11cm |
8cm |
11cm |
17cm |
| Motor Head Width: |
17.5cm |
18cm |
17.5cm |
26cm |
| Motor Head Length: |
36cm |
44cm |
| C-rail track dimensions: |
75mm x 33mm |
| C-rail & chassis construction: |
2mm Zinc coated steel |
Minimum Space above the Door:
(distance between highest point of door movement and ceiling) |
35mm |
| Maximum quantity of remote controls |
10 |
256 |
| Shipping Weight: (including packaging) |
19kg |
20kg |
19kg |
22kg |
|
|
Click image to enlarge

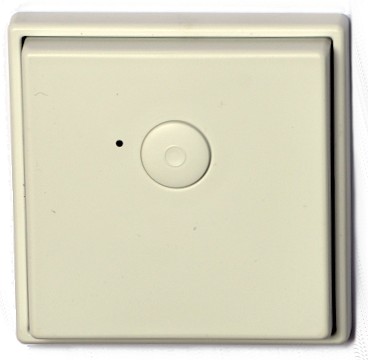

A wall mounted pushbutton
switch
is included |
Seip operators are supplied with the following:
- Comprehensive DIY manufacturer installation instructions
- Wall mounted internal pushbutton control switch
- Low energy 7 Watt CFL courtesy lamp bulb
- Mounting brackets
- Fitted 13A mains plug
- Cable operated emergency manual release info
(this can be connected to the door's existing locking handle
to enable manual operation from outside)
- Expert telephone assistance to ensure hassle-free DIY installation
|
|
|
Optional Accessories
|
Click images to enlarge
Hormann sectional door bracket |
Bracket to suit Hormann sectional type doors
can be supplied as an
alternative to the standard
door connecting bracket with any Seip operator
suits all Hormann sectional type up & over doorsprice
if ordered with a Seip operator:
£
excl. VAT
(normal
price: £)
Our ref: APL0044
|
|
|
|
Click image to enlarge
 |

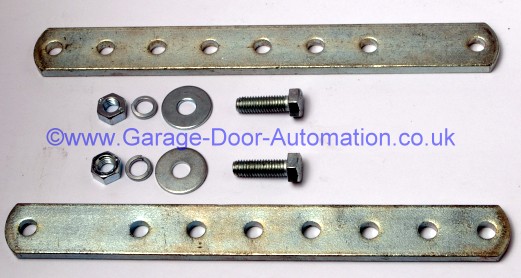

Motor mounting brackets (one pair)
dimensions: 225mm x 93mm x 35mm
One pair are included with all Seip operators but extension brackets will be required if the distance from the top of your door to the
ceiling is greater than 250mm
(Note: if hammered out flat, these brackets can extend the original brackets by up to 275mm)
supplied with nuts, bolts & washers as illustrated
our ref: APL0046
|
|
|
|
|
Click image to enlarge
 |
Steel punched angle brackets (one pair)
dimensions: 23mm x 23mm x 760mm
supplied with nuts, bolts & washers as illustrated
our ref: APL0047
|
£
excl. VAT |
|
|
|
Securi-Dor
automatic locking |
Securi-Dor
automatic security locking system
This device enables a
remote controlled door opener to
securely lock a garage door
automatically after the door
has closed using the original manual side
latches.
The device fits all one-piece horizontally tracked
single or
double width garage doors regardless of make ...
more info
Our Ref: AP2000
Save £ with our Special Offer Package Deal*
Add a Seip electric operator to your basket and
pay £ excl. VAT
for our Securi-Dor AP2000
automatic multi-point security locking system (this discount deal will be offered to you at the on-line checkout)
|
£*
excl. VAT |
|
|
|

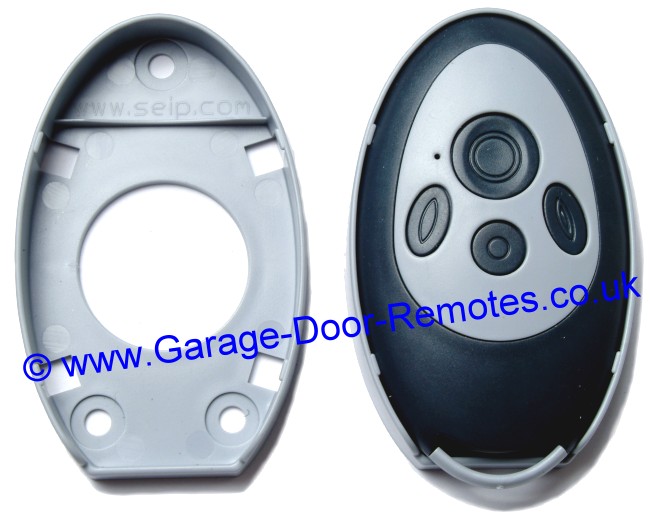

Seip midi holder
|
Wall holder for oval midi keyfob
This will convert a
Seip midi keyfob
into a wireless wall control switch
(keyfob can be removed easily for portable use)
Our Ref: MH03
Replacement Seip keyfob transmitters |
£
excl. VAT |
|
|
|

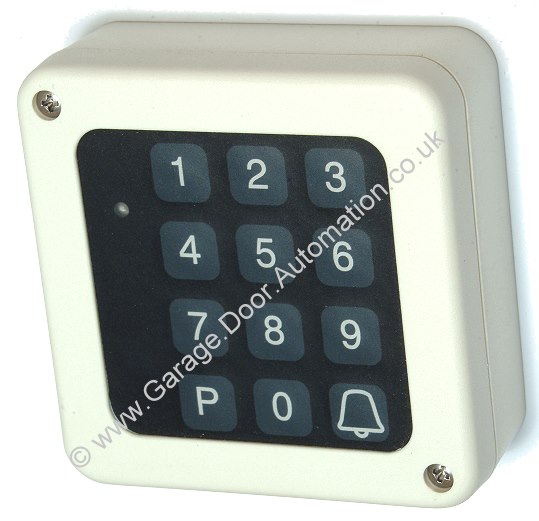

Seip wireless keypad |
Wireless external digital numeric entry keypad
can be programmed with up to four separate personal security codes to
provide individual control of four doors or gates -
compatible with all current Seip door operators
and Seip
EKR1MCG &
EKR1MCT receiver units
only
Two alkaline AA batteries are included and the
unit
has a battery life of approximately 5 years.
dimensions 83mm x 86mm x 29mm
Seip Ref: SKR4C433-1
|
£
excl. VAT
|
|
|
|
Domino numeric
digital entry keypad
visit the Seip website |
Domino
external digital numeric entry system
The DOMINO keyless
digital entry
system is
a simple and
secure way to open and close
your garage door without the need for a key or remote
control (connection is by low-voltage two
core bell wire to the operator's wall control push-button
terminals)
Our Ref: GD-1
(three 'AA' batteries included) |
£
excl. VAT |
|
|
Infra-red break-beam safety detector kit
provides additional safety by stopping the motor if an invisible light
beam across the doorway is broken
Our
Ref: IRBEAM
|
£
excl. VAT |
|
|
100cm C-rail track & chain extension kit
(required for doors over 230cm high)
Our
Ref: SEIP/EX
|
£
excl. VAT |
|
•
Hardware & Fixings
•
|
|
Request
a specification by e-mail for
a Seip operator to suit your door
|
Would
you like to add remote control to
your: |
|
 |
Garden Lighting
Water Features
Pond Pumps
or
Entrance Gates ? |
|

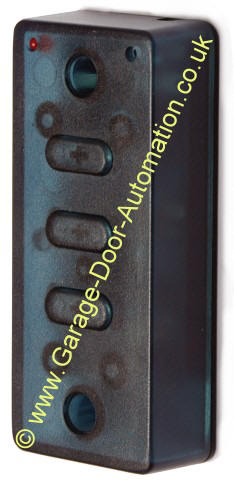

Seip manufacture a receiver to enable items such as gates or garden
pumps & lights etc. to be operated from spare buttons on your Seip
keyfob transmitter, the receiver is housed in a weatherproof enclosure
making it suitable for indoor or outdoor applications
Range aprox 75 - 100mtrs
Click Here for Further Details |
|
A Word On Price !
"It's unwise to pay too
much, but it's worse to pay too little. When you pay too much you lose a
little money and that is all. When you pay too little you sometimes lose
everything because the thing you bought was incapable of doing the
actual thing that it was bought to do. The common law of business
balance prohibits paying a little and getting a lot - it can't be done.
If you deal with the lowest bidder it is well to add something for the
risk you run, and if you do that you will have enough to pay for
something better."
John Ruskin (1819-1900) |
|
|
•
Add or Read a Review of this Product •
• Fitting Instructions
• Securi-Dor Multi-Point Locking
•
• Replacement Seip Transmitters • Seip
Operator Spares •
• Site Index • Home Page •
Contact Us • |
01384 900 264
*
*
