of a large timber garage
Click images to enlarge

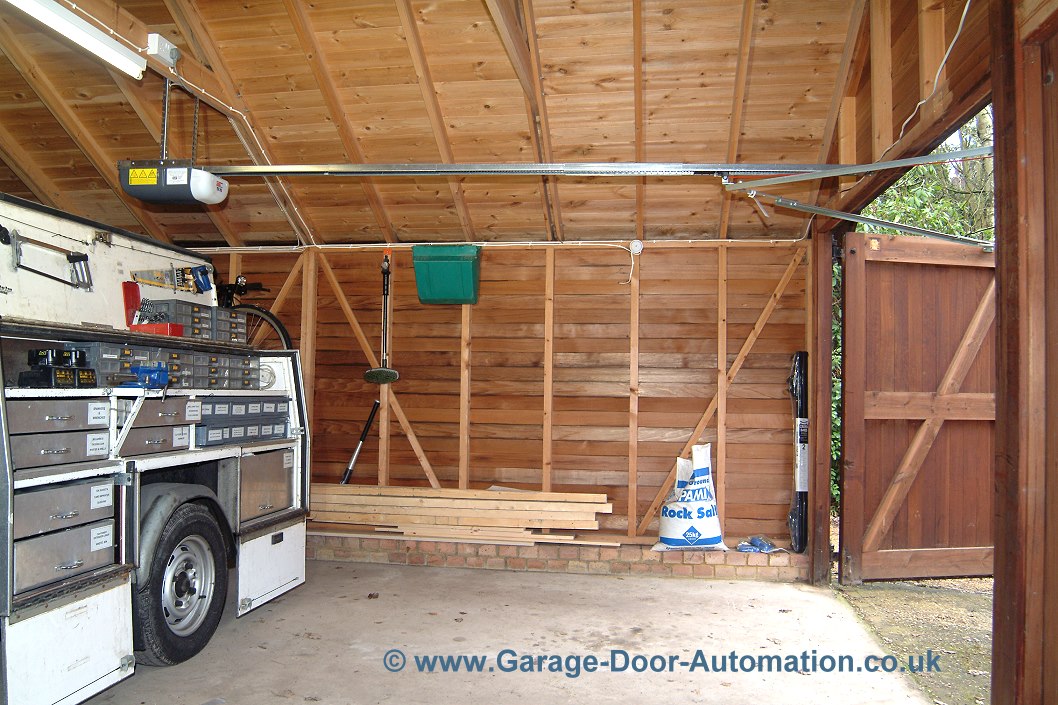

Two Seip electric operators with
AP2006 barn door arms
How far will the doors open out ?
The exact angle to which the doors will
open is dependent on the door opening width but the AP2007 arms will
open a pair of 4' leaves to approximately 135 degrees.
Not: on this installation the AP2006 connecting arms were configured to
inner doors to 90 degrees and open outer doors to approx 130 degrees
for easy access
