An old worn out door can re-hung on
new horizontally tracked support gear

Our conversion is suits most makes of double width door, including Westland Garador
types
PN39, PN49, PN87, PN93, PN131, 'Double R' (DR) CM & DC (double canopy)

Suitable for remote controlled operation

 If you have one of the following canopy door types Click here
Garador types PN4L, PN31, PN59 and 'Belgravia'
Henderson 'Double Merlin' aluminium door

 Out with the old, in with the new !
The following pictures show a 25 year old Garador PN87 double-width door during various
stages of refurbishment but our conversion kit can be used on most makes of garage door

Click to enlarge image

Old broken Garador pivot arm

The old worn or broken door mechanism

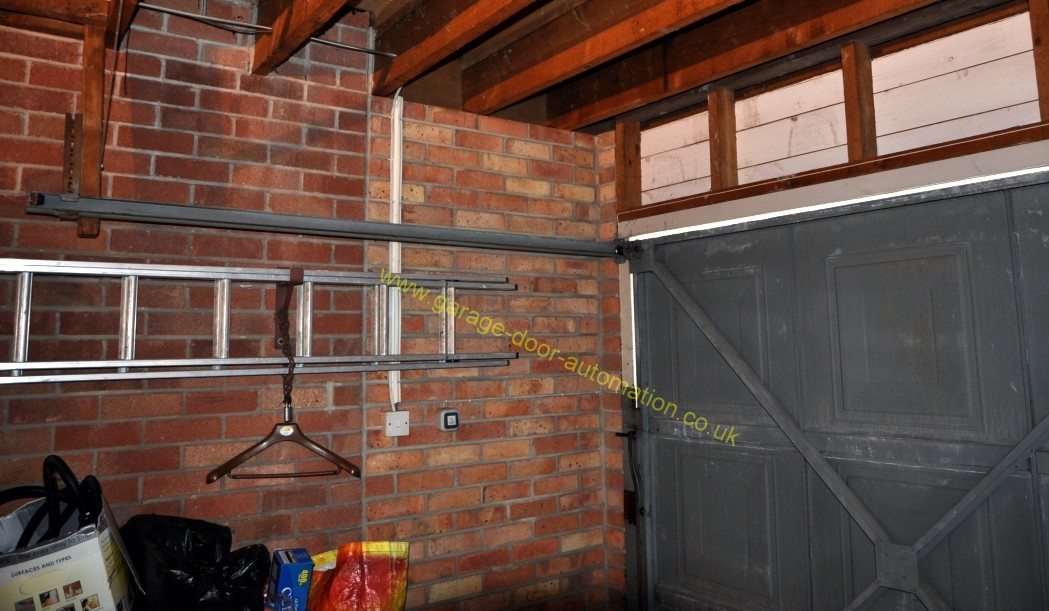

 picture shows a typical Westland Garador PN87 double door

The original Garador door support mechanism is removed &
discarded then the original door panel is re-installed on new
Arcadian AP250 horizontally tracked support gear


The original support arms, rollers, springs & weather strips etc are removed & discarded (Garador PN87 illustrated)


Click to enlarge images

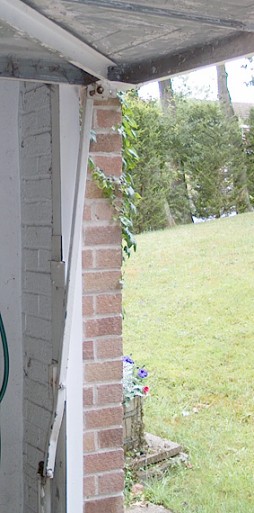

The original Westland Garador lifting
gear mechanism before replacement

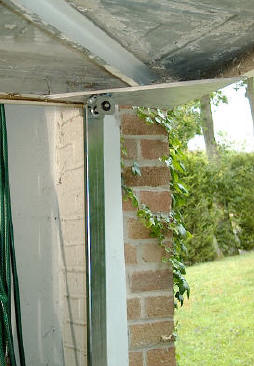

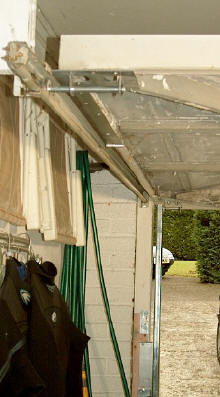

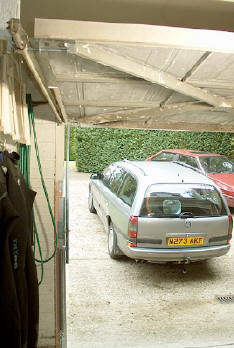

Same door, after refurbishment with new Arcadian door gear mechanism!
Click to enlarge image

Arcadian roller brackets & weather strips etc.

Arcadian horizontal tracks & stabilizer brackets
New top rollers & weather-strips are fitted

New steel bracing plates are fitted to the bottom
corners to accommodate the new mechanism


Click to enlarge image

The new Arcadian 2" x 1" balance arms are much stronger than the original 1" x 1" Garador arms

Click to enlarge image

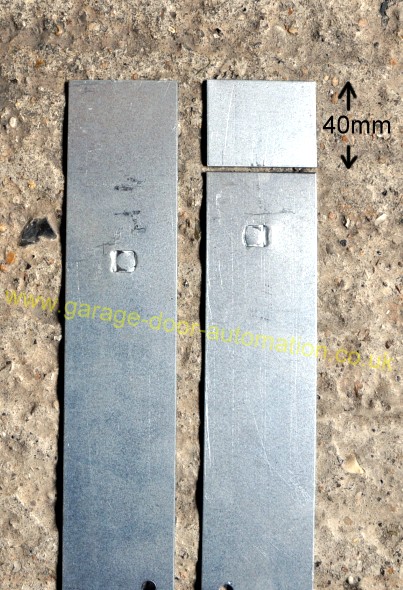

Note: If you prefer to install the new Arcadian tracks exactly horizontal (like the original Garador tracks were) you'll need to crop 40mm from the upper side weather strips and move the lower side weather strips up to meet them (you'll now need to drill fresh holes in the lower side weather strips for the main pivot arm bearing fixings, 45mm down from the pre-punched holes)
Click to enlarge images

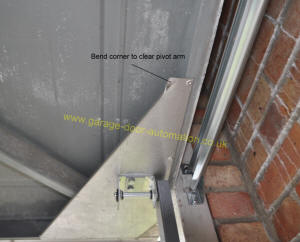

Fold down the new corner plates as shown above to
provide clearance for the Arcadian pivot arms

Suitable for electric operation

Click Here
for details of our range of remote controlled
Electric Operators

Security

A remote controlled garage door will be
locked automatically by the electric
operator at the top when closed.

Our optional Securi-Dor AP2000 patented locking system can be fitted to provide additional security by   automatically engaging security bolts at the bottom corners of the door when closed to provide an unrivalled level of security



Click to enlarge image

The Securi-Dor AP2000 actuating arm
Click to enlarge image
Click to enlarge image
The Securi-Dor latch operating cam and a pair of cable operated side latches (Our Ref. AP2003)


Securi-Dor AP2007 automatic floor bolt (optional)


Read what our D.I.Y. customers say !

I purchased two Arcadian door gear kits to convert a pair of Garador canopy doors.  It's good quality gear and you don't need a degree in rocket science to fit it. Then I ordered two Seip TM60 remote controlled electric operators.  Again, excellent equipment which was straight forward to fit and is wonderfully effective. I encountered a couple of minor problems along the way (with my particular installation, not with the equipment) and a phone call to Nick at Amourelle had it all sorted in seconds. Amourelle's prompt delivery and customer service are second to none. It is refreshing to find a company with such 'old fashioned' customer value! - Jeff Vernon; Doncaster, S. Yorks.   I ordered a Seip electric door opener and an Arcadian door gear conversion kit for my canopy type garage door late on Thursday evening, the goods were delivered next day 11.30!!  I received plenty of help and advice. And there can’t be many businesses that say ”If you are doing the work over the weekend and need help, then just give me a call on my mobile”   All in all a great service.
I. Saunders, Aldershot, Hants.

Read More Reviews from Satisfied Customers


This conversion work should only be undertaken by competent D.I.Y. enthusiasts

Fitting instructions
