Views of our horizontally tracked gear conversion to
some early Westland Engineers Ltd (WEL) double width
canopy doors with counterbalance weights
Westland identification plate
|
| 'Before' and 'After' - A thirty year old Westland 'WELRISE' double width door |
|
Out with the old, in with the new ! The following pictures show various stages of our conversion

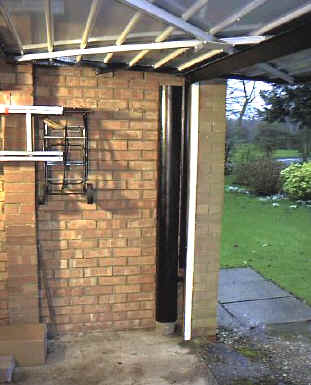

The original vertical tracks, support arms, rollers, cables & weights etc. are removed & discarded
|
Original support gear from an early Westland Engineers Ltd (WEL)
double width canopy door with concrete counterbalance weights
|
|
|
 |  | Completed conversion of a double Westland door, note the new horizontal support tracks & side mounted springs| Please Note: After conversion to horizontally tracked operation the door will extend back into the garage approximately 40cm to 60cm more than it did with the original vertically tracked canopy mechanism so please check your garage for obstructions such as an RSJ or gas meter etc. before undertaking this conversion. |
|
|
When converted, your existing canopy door will slide back into
the garage on horizontal tracks making it suitable for electric operation. | Click Here
for details of our range of
remote controlled
Electric Operators
 |
 |  |
A completed conversion with a Seip electric operator fitted - the door now
glides effortlessly back fully into the garage on its new horizontal tracks |
Security A remote controlled garage door will be locked automatically by the electric operator at the top when closed. Our optional Securi-Dor AP2000 patented locking system can be fitted to provide additional security by automatically engaging security bolts at the bottom corners of the door when closed to provide an unrivalled level of security | Click image to enlarge
Securi-Dor AP2000 actuating arm
and a Seip TS75 electric operator | Click image to enlarge
 | Click image to enlarge
 | | Securi-Dor latch operating cam and a pair of AP2003 cable operated side latches |
|
Read what our D.I.Y. customers say ! | I purchased two Arcadian door gear kits to convert a pair of Garador canopy doors. It's good quality gear and you don't need a degree in rocket science to fit it. Then I ordered two Seip TM60 remote controlled electric operators. Again, excellent equipment which was straight forward to fit and is wonderfully effective. I encountered a couple of minor problems along the way (with my particular installation, not with the equipment) and a phone call to Nick at Amourelle had it all sorted in seconds. Amourelle's prompt delivery and customer service are second to none. It is refreshing to find a company with such 'old fashioned' customer value! - Jeff Vernon, Doncaster, S. Yorks. | | I ordered a Seip electric door opener and an Arcadian door gear conversion kit for my canopy type garage door late on Thursday evening, the goods were delivered next day 11.30!! I received plenty of help and advice. And there can’t be many businesses that say ”If you are doing the work over the weekend and need help, then just give me a call on my mobile” All in all a great service.
I. Saunders, Aldershot, Hants. |
Read More Reviews from Satisfied Customers
This is a cost-effective & reliable method of converting an old Westland canopy door but the work
should only be undertaken by competent D.I.Y. enthusiasts - Fitting instructions |
If you live within 20 miles of our Reading base in the Thames Valley
we would be pleased to undertake the conversion work for you | Our Installation Service |
