Garador Mk4 & type 'F' vertically tracked steel framed canopy doors
can re-hung on new horizontally tracked support gear to enable
safe & reliable remote controlled operation
(These Garador canopy doors have the springs located inside the steel door frame)
|Out with the old, in with the new ! The following pictures show various stages of our conversion|
|before - on original canopy mechanism|
which is not suited to reliable automation
|after - on new fully retracting slide-away mechanism|
|The original Garador Mk4c vertically tracked mechanism, comprising of the support arms,|
roller plates, springs and the vertical box sections on the door etc. are removed & discarded
Garador steel framed canopy door gear - type 'F' & 'Mk4'
Once the door is stripped of the original vertically tracked gear it is
re-installed on new Arcadian AP100 horizontally tracked support gear
New bottom corner bracing plates are fitted for strength
New top rollers & weather-strips are fitted
Garador type 'F' & 'Mk4'
steel framed canopy door
(the springs are housed inside the frame uprights)
Note: The new Arcadian AP100 door gear is designed to be installed onto a timber frame so we recommend that the steel door frame is replaced with a new 69mm x 69mm timber frame. Alternatively it is possible to retain the steel frame but it will be necessary to remove the springs, clean out the grease from inside the frame box-sections and glue two lengths of 40mm x 40mm timber inside the uprights using 'Gripfill' mastic or similar, (as illustrated right) these timbers will provide a fixing for the replacement AP100 door support gear and track fixing brackets. (these timbers should be clamped with screws to prevent movement within the steel frame while the mastic hardens) The new top corner roller plates must be fitted so that the rollers are at the lowest position and a small portion of the new horizontal track mounting brackets may need to be cut away to clear a steel bracket at the top corner of the steel frame and all the fixing screws will need to be substituted with shorter screws.
new AP100 corner plate, roller & track
|A completed conversion with a Seip electric operator fitted|
Please Note: After conversion to horizontally tracked operation the door will extend back into the garage approximately 40cm to 50cm more than it did with the original vertically tracked canopy mechanism so please check your garage for obstructions such as an RSJ or gas meter etc. before undertaking this conversion.
Click image to enlarge
The design of the AP100 lifting gear provides maximum drive-through width at door mirror height
Soft rubber weather-strips down the timber door jambs keep out draughts whilst eliminating any risk of damage to your car
Once converted, your existing canopy door will
glide effortlessly back into the garage on horizontal tracks making it suitable for electric operation.
for details of our range
of remote controlled
A remote controlled garage door will be locked automatically by the electric operator at the top when closed.
Our optional Securi-Dor AP2000 patented locking system can be fitted to provide additional security by automatically engaging security bolts at the bottom corners of the door when closed to provide an unrivalled level of security
Click image to enlarge
The Securi-Dor AP2000 actuating arm

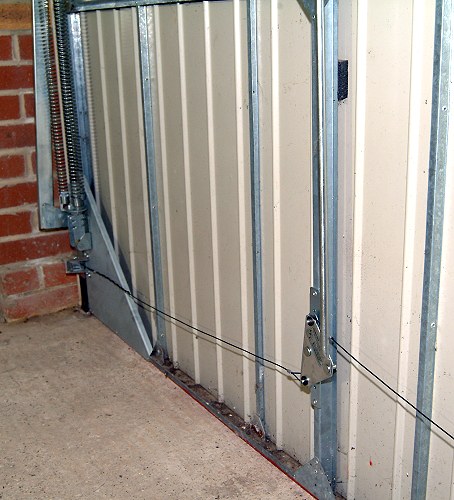

|The Securi-Dor latch operating cam and a pair of cable operated side latches (Our Ref. AP2003)|
