Upgrading Westland Garador and Henderson vertically tracked
canopy type doors to horizontally tracked mechanism
Suitable for remote controlled operation The conversion described on this page suits most garage doors including the following popular types:-
Westland / Garador types PN4L, PN31, PN59 and 'Belgravia' and Henderson
'Double Merlin' aluminium doors | | For Westland WELRISE doors click here For Westland Garador types PN39, PN49,
PN87, PN93, or 'Double R' Click Here For other Garador types click here For single width doors (up to 8' wide) Click Here |
|
The pictures below show a Westland Garador PN59 14' x 7'
double width canopy door at various stages of our conversion:- |
Click images to enlarge

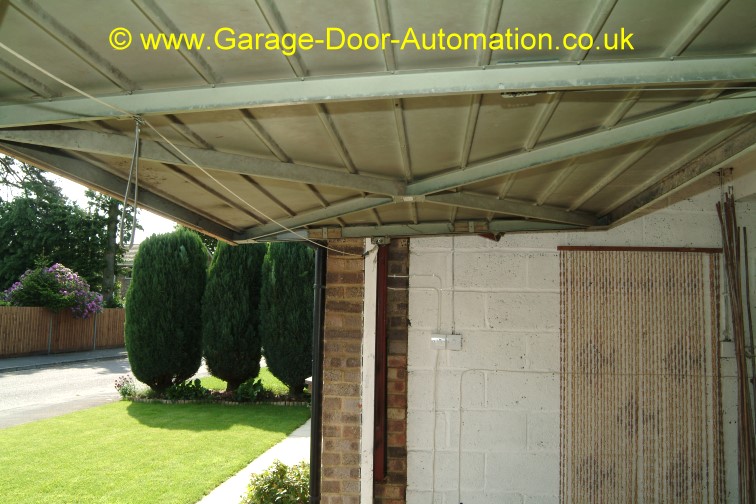

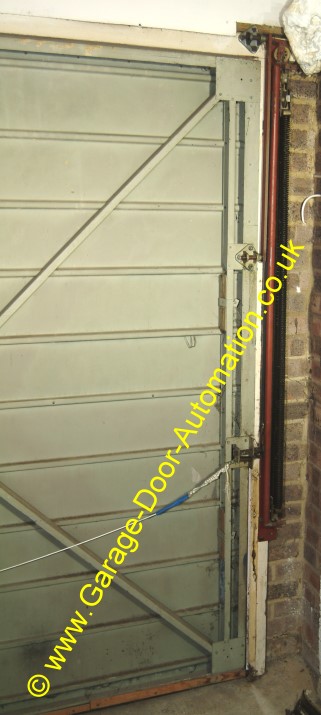

Door on it's original Westland Garador

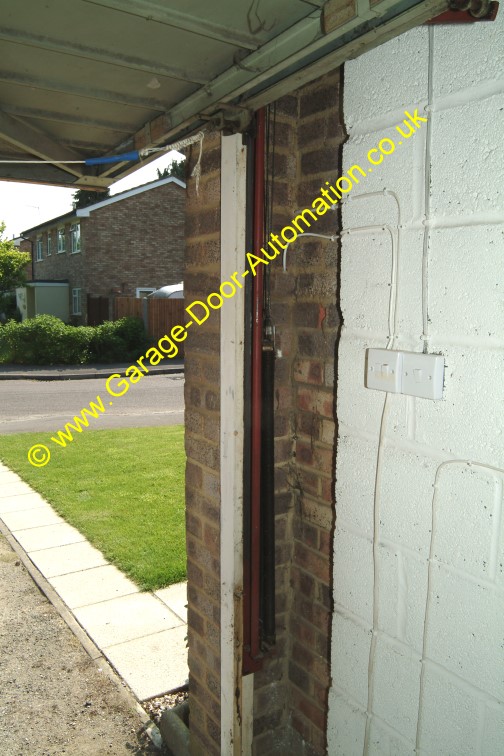

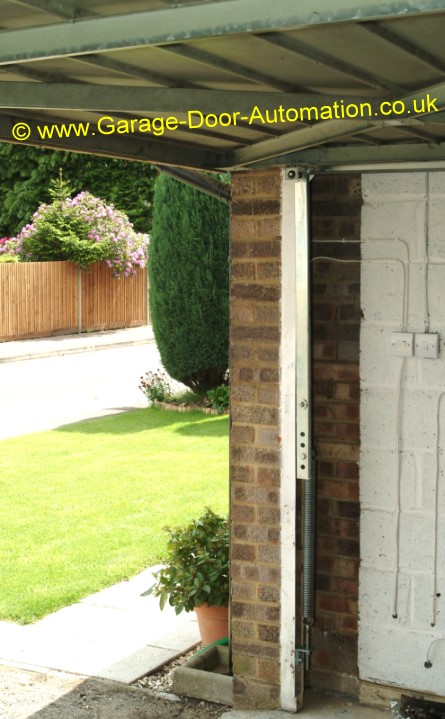

PN59 vertically tracked canopy support gear | Click images to enlarge

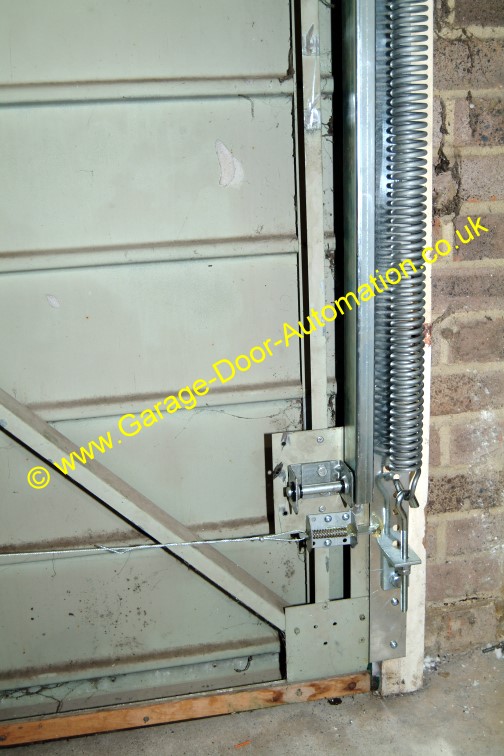

A completed conversion on new Arcadian AP250
horizontally tracked support gear |  |

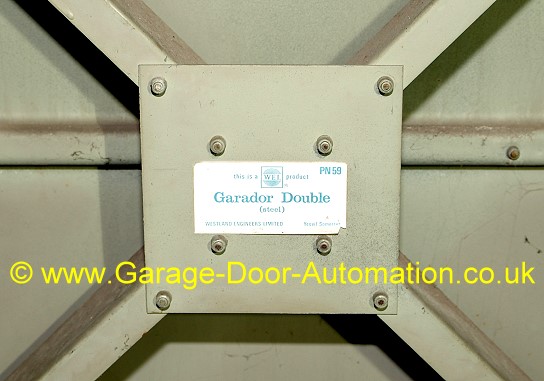

PN59 identification lable | | Click images to enlarge |
|
The original vertical tracks, support arms, rollers, cables & springs etc. are removed & discarded
Original parts removed from a Westland Garador type PN59 double width canopy door
| Click image for details
Original support gear from an early Westland Engineers Ltd (WEL)
'WELRISE' double width canopy door with counterbalance weights
Click Here for this type of WEL door |

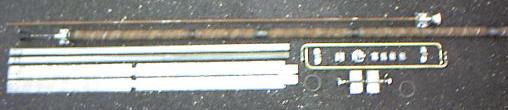

Items removed from a Henderson double Merlin canopy door
|
|

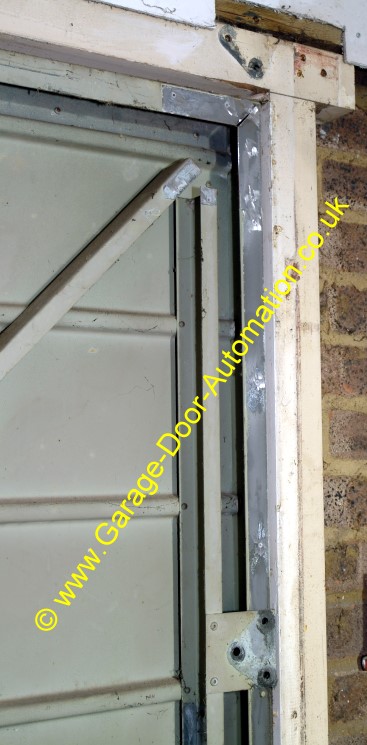

Once the door is stripped of the original vertically tracked gear
it can be re-installed on new Arcadian horizontally tracked support gear | New Arcadian top rollers & weather-strips are fitted
 |
New bottom corner bracing plates are fitted for strength
(not required on Henderson double Merlin doors or the
version of the Westland Garador PN59 door with twin
vertical bracing struts shown below)
|
|

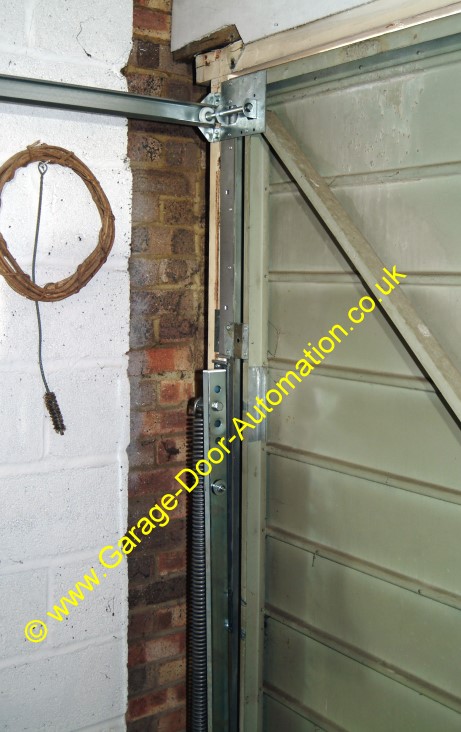

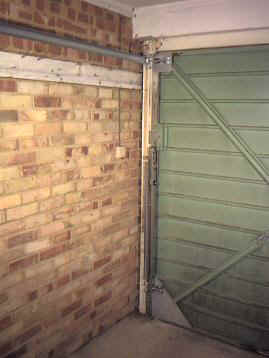

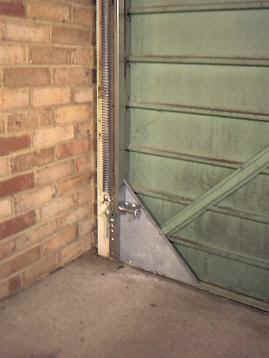

| New corner plates with rollers, horizontal tracks, side weather strips,
pivot arms & side mounted counterbalance springs are fitted |

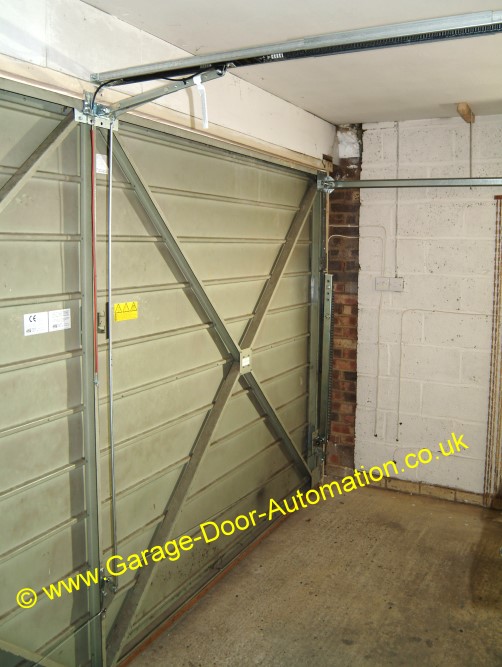

A completed conversion with
a Seip electric operator fitted |
New Arcadian support arms can be attached to a Westland Garador PN59 door with twin vertical bracing struts using the original steel top corner plates salvaged from the old door gear |
| Click images to enlarge Some doors require new APL2009 steel corner plates to be fitted to provide a suitable fixing for the new Arcadian support arms |
|
|
|

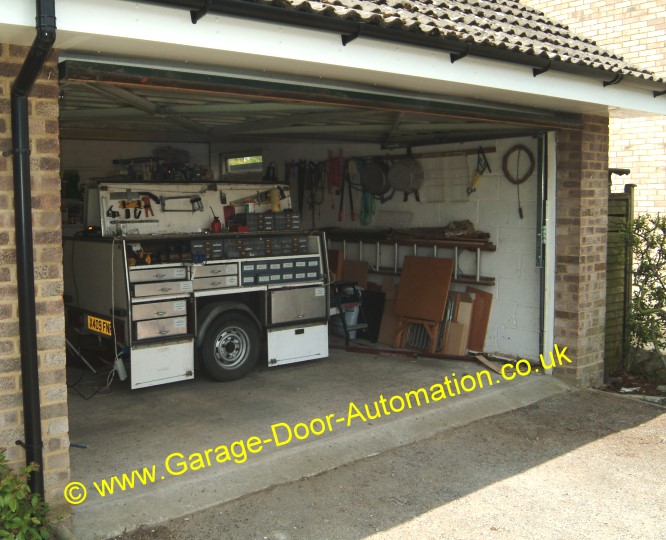

Completed conversion of a heavy 14' x 7 'Westland type PN59 steel door using Arcadian AP250 support gear
The door now glides effortlessly back into the garage on its new horizontally tracked gear |
 |
Once converted, your existing
canopy door will to slide back into
the garage on horizontal tracks
making it suitable for
electric operation.
|  |

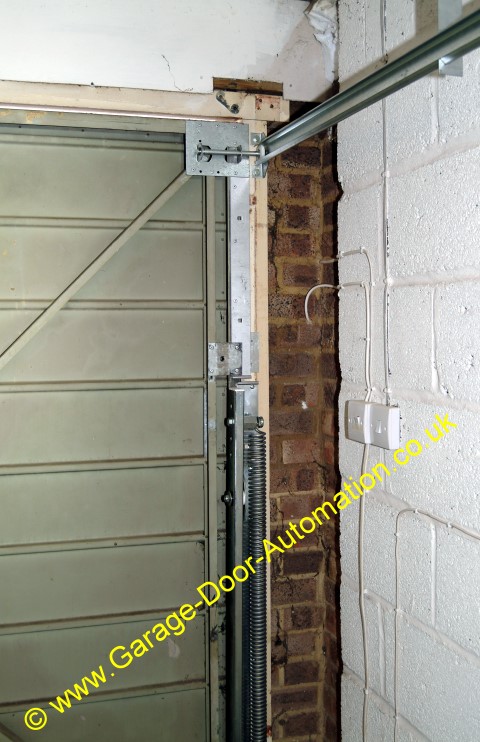

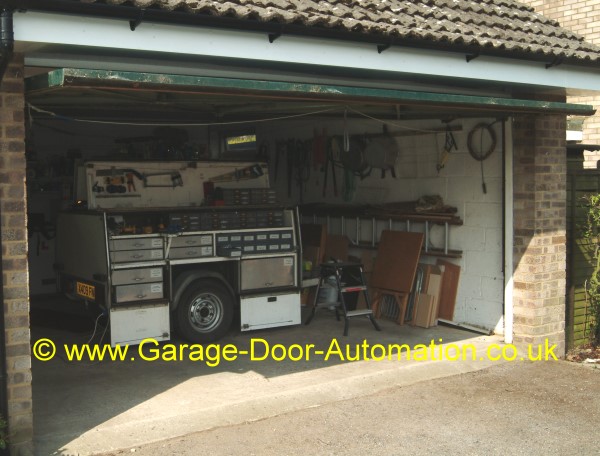

| The original door on new AP250 horizontally tracked support gear | Completed conversion ready for automation
(14' x 7' Westland Garador door shown) |
| Please Note: After conversion to horizontally tracked operation the door will extend back into the garage approximately 40cm to 60cm more than it did with the original vertically tracked canopy mechanism so please check your garage for obstructions such as an RSJ or gas meter etc. before undertaking this conversion. |
Read what our D.I.Y. customers say ! | I purchased two Arcadian door gear kits to convert a pair of Garador canopy doors. It's good quality gear and you don't need a degree in rocket science to fit it. Then I ordered two Seip TM60 remote controlled electric operators. Again, excellent equipment which was straight forward to fit and is wonderfully effective. I encountered a couple of minor problems along the way (with my particular installation, not with the equipment) and a phone call to Nick at Amourelle had it all sorted in seconds. Amourelle's prompt delivery and customer service are second to none. It is refreshing to find a company with such 'old fashioned' customer value! - Jeff Vernon; Doncaster, S. Yorks. | | I ordered a Seip electric door opener and an Arcadian door gear conversion kit for my canopy type garage door late on Thursday evening, the goods were delivered next day 11.30!! I received plenty of help and advice. And there can’t be many businesses that say ”If you are doing the work over the weekend and need help, then just give me a call on my mobile” All in all a great service.
I. Saunders, Aldershot, Hants. |
Read More Reviews from Satisfied Customers
|
A lightweight Henderson Double Merlin aluminium
door on new Arcadian AP150 horizontally tracked gear
| Click Here
for details of our range
of remote controlled
Electric Operators
 Our Securi-Dor patented locking system
can be fitted to provide unrivalled security by automatically engaging additional security
bolts on the door when closed Click images to enlarge |

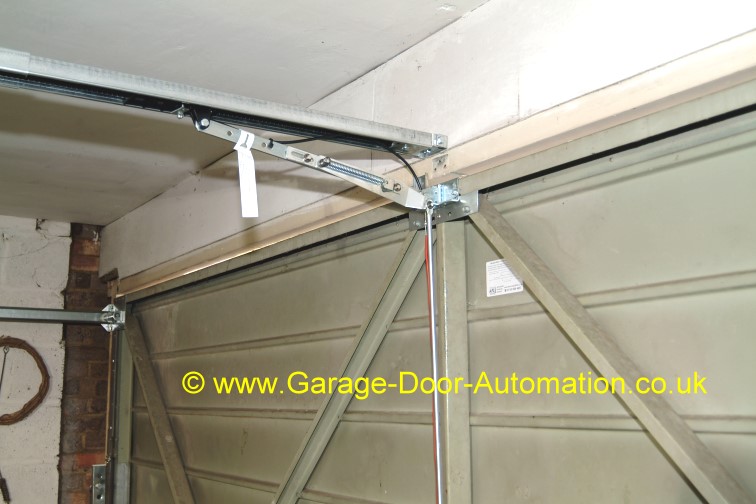

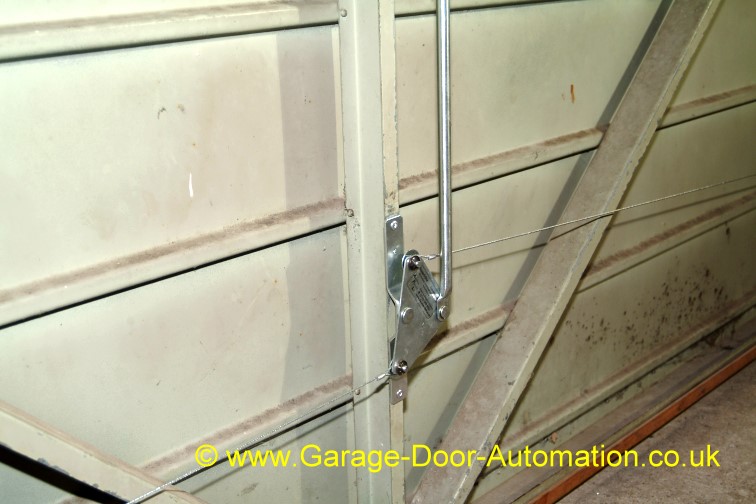

The Securi-Dor AP2000 actuating arm
|
