Cardale vertically tracked canopy type doors
can re-hung on new horizontally tracked support gear to enable
safe & reliable remote controlled operationCardale CD45 canopy door support gear is also fitted to Apex, Wickes, B&Q, Bonsack & Wessex doors |
| Out with the old, in with the new ! The following pictures show various stages of our conversion :- Click images to enlarge |
|
The original Cardale vertically tracked mechanism parts are removed & discarded
(tracks, support arms, rollers, cables & springs etc.) |
Cardale 'CD45' canopy gear (pre-profesional series)
(also fitted to Apex, Wickes, B&Q, Bonsack & Wessex doors)
|
Click image to enlarge
Cardale canopy gear with overhead spring & flat link arms (Pre CD45 type) |
Click image to enlarge
Cardale Mk2 & Mk3 canopy gear with centrally mounted
overhead 'clock spring' type spring drum & two cables |
Click image to enlarge
Original Cardale Mk1 canopy gear with 'clock spring' type
spring drums mounted at the top of each frame post
|
Once the door is stripped of its original vertically tracked gear
it is re-installed on new Arcadian AP100 horizontally tracked support gear | New top rollers & weather-strips are fitted
 | Strong steel bracing plates are fitted to
the bottom corners to accommodate
the new mechanism (see RH door)
Click image to enlarge
 |  |  | | Cardale Mk2 & Mk3 canopy gear with a centrally mounted 'clock spring' type spring drum |

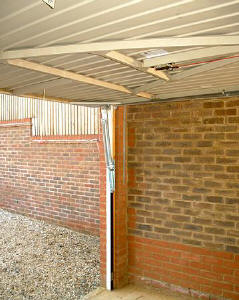

|  | The original door on its new AP100 horizontally tracked lifting gearPlease Note: After conversion to horizontally tracked operation the door will extend back into the garage approximately 40cm to 50cm more than it did with the original vertically tracked canopy mechanism so please check your garage for obstructions such as an RSJ or gas meter etc. before undertaking this conversion. |
| Click image to enlarge
A completed conversion with a Seip electric
operator fitted - the door now glides effortlessly back
into the garage on its new horizontal tracks | Click image to enlarge
The design of the AP100 lifting gear provides maximum
drive-through width at door mirror height | Soft rubber weather-strips down the timber door jambs keep out draughts
whilst eliminating any risk of damage to your car |
|
Read what our D.I.Y. customers say ! | I purchased two Arcadian door gear kits to convert a pair of Garador canopy doors. It's good quality gear and you don't need a degree in rocket science to fit it. Then I ordered two Seip TM60 remote controlled electric operators. Again, excellent equipment which was straight forward to fit and is wonderfully effective. I encountered a couple of minor problems along the way (with my particular installation, not with the equipment) and a phone call to Nick at Amourelle had it all sorted in seconds. Amourelle's prompt delivery and customer service are second to none. It is refreshing to find a company with such 'old fashioned' customer value! - Jeff Vernon; Doncaster, S. Yorks. | | I ordered a Seip electric door opener and an Arcadian door gear conversion kit for my canopy type garage door late on Thursday evening, the goods were delivered next day 11.30!! I received plenty of help and advice. And there can’t be many businesses that say ”If you are doing the work over the weekend and need help, then just give me a call on my mobile” All in all a great service.
I. Saunders, Aldershot, Hants. |
Read More Reviews from Satisfied Customers
|
The door can be released from a
Seip electric operator and opened manually
using the original Cardale locking handle |
Once converted, your existing canopy door will
glide effortlessly back into the garage on horizontal tracks making it suitable for electric operation.
Click Here
for details of our range
of remote controlled Electric Operators |  |
| Security A remote controlled garage door will be locked automatically by the electric operator at the top when closed. Our optional Securi-Dor AP2000 patented locking system can be fitted to provide additional security by automatically engaging security bolts at the bottom corners of the door when closed to provide an unrivalled level of security | Click image to enlarge
The Securi-Dor AP2000 actuating arm | Click image to enlarge
 | Click image to enlarge
 | | Securi-Dor AP2000 latch operating cam and cable operated side latches (Our Ref: AP2003) |
|
Our conversion provides a cost-effective & reliable method of automating a canopy type door but the
work should only be undertaken by competent D.I.Y. enthusiasts - Fitting instructions |
|
If you live within 20 miles of our Reading base in the Thames Valley we would be pleased to undertake the conversion work for you | Our Installation Service |
